TF-B1 - Stratospheric Balloon Experimental Platform

The TF-B1 stratospheric balloon is a versatile high-altitude experimental platform designed for several-hour flights to altitudes around 30 km. It serves as a universal carrier for atmospheric research, technology validation, and educational projects. Built on proven ThunderFly avionics modules, TF-B1 provides reliable performance in near-space conditions, offering a cost-effective alternative to satellite testbeds.

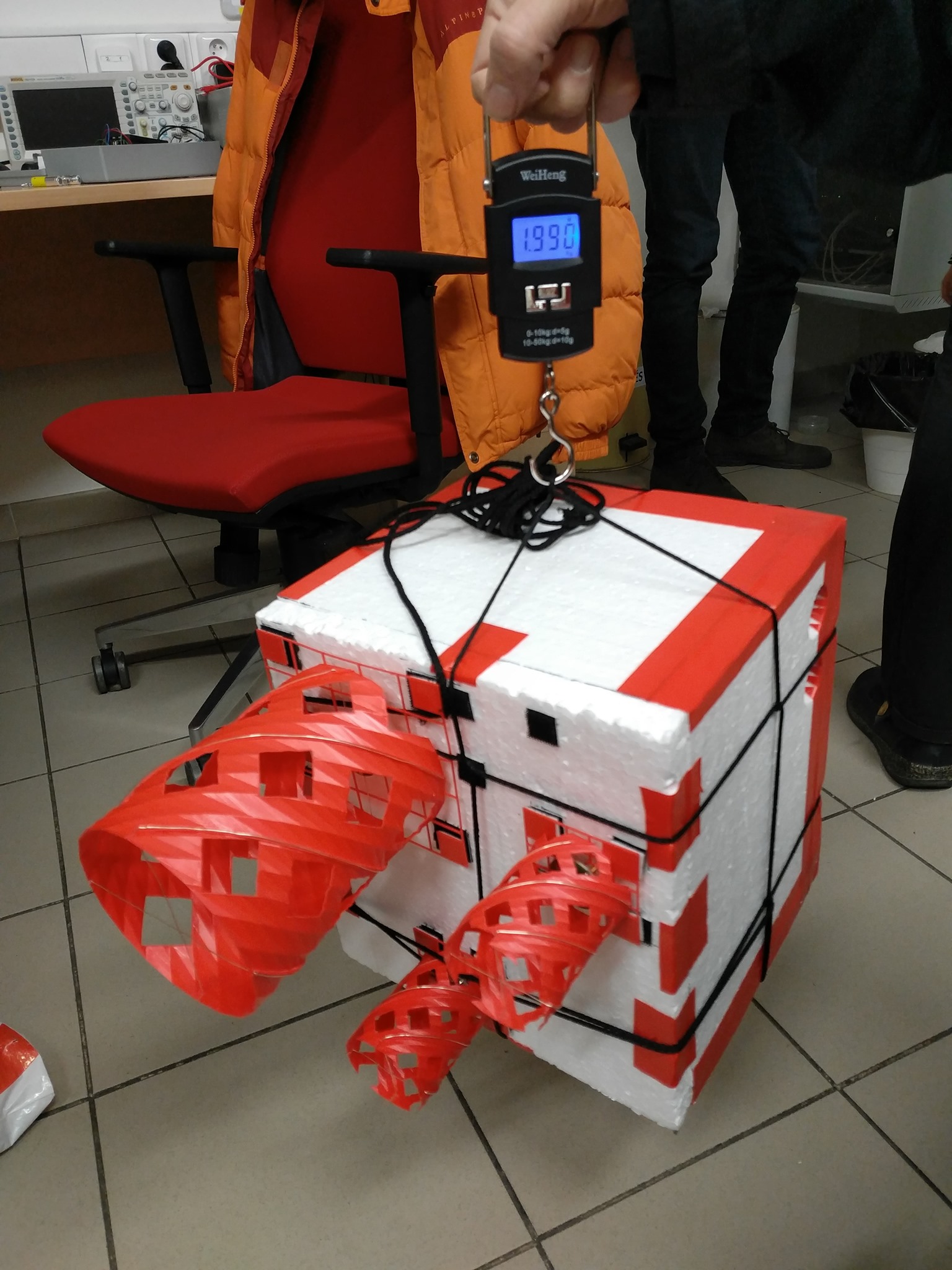

Example of experimental gondola

Main design highlights

Reference flights

TF-B1 has been successfully deployed in multiple missions:

The result from these missions is the following scientific paper MEASUREMENT OF THE REGENER-PFOTZER MAXIMUM USING DIFFERENT TYPES OF IONISING RADIATION DETECTORS AND A NEW TELEMETRY SYSTEM TF-ATMON

Applications

Atmospheric research

TF-B1 enables high-resolution measurements of temperature, humidity, and gas composition in the stratosphere. Using ThunderFly’s TFHT01 and TFHT02 sensors, vertical atmospheric profiles can be collected for improved weather prediction models and climate studies.

Aerospace and materials testing

The balloon gondola provides near-space conditions such as an isolated environment, extreme temperatures, and increased radiation. This environment is ideal for testing spacecraft components, electronics, and materials before deployment in orbit.

Educational and outreach missions

TF-B1 offers an accessible way for students and researchers to conduct real high-altitude experiments. Short-duration flights allow hands-on experience in instrumentation, avionics, and atmospheric sciences.

Professional support

Professional support for the ThunderFly TF-B1 stratospheric balloon platform is commercially available from ThunderFly s.r.o.. For inquiries, contact us at info@thunderfly.cz.

Technical specifications

ParameterTypical valueNotes
Maximum altitude30 kmVerified in test flights
Payload capacityup to 2 kgDepends on balloon size and helium fill
Flight duration2–4 hoursDepending on ascent rate and burst altitude
Ascent rate5–6 m/sTypical for 2 kg payload with 1200–1600 g latex balloon
Descent systemParachute recoveryAutomatically deployed after burst
Operating temperature range–60 °C to +40 °CElectronics rated for stratospheric conditions
Power supplyLi-ion battery pack, 7.2 V nominalManaged by TFSBEC01
TelemetryTFSIK01 (primary), TFLORA01 (backup)Redundant communication systems
PositioningTFGPS01 GNSS receiverContinuous location and altitude tracking
Sensor integrationTFHT01 / TFHT02 / TF-ATMONAtmospheric and environmental sensors
Data loggingOnboard SD storage + real-time telemetrySupports full mission replay
StructureEPP/foam gondola with modular avionics bayShock-resistant and lightweight
Launch methodFree balloon launch with tether releaseCompliant with national aviation regulations
RecoveryGNSS-based tracking beaconEnables field retrieval

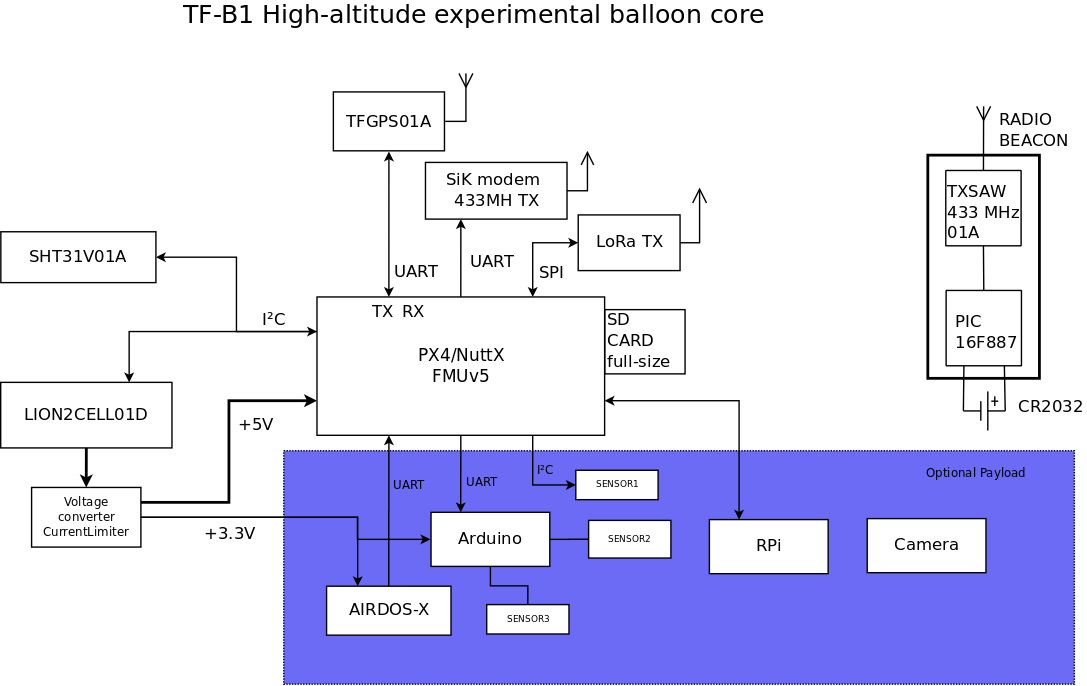

Block diagram

LoRa Beacon Configuration

TF-B1 includes a long-range recovery beacon implemented using the TFLORA01 LoRa modem. The beacon periodically transmits a compact GPS telemetry packet that allows recovery of the payload even when the primary telemetry link is unavailable.

The LoRa subsystem is implemented using two software modules. Only the application layer is platform-specific:

tflora Low-level LoRa PX4 driver based on the LMIC stack. Responsible for radio configuration, packet transmission, spreading factor control, and scheduling of radio activity. This module is a generic TFLORA01 driver and is intended to remain unchanged across different platforms. For the configuration of this software module looks in TFLORA01 documentation.

lora_gps_vcmd Application layer used in TF-B1. This module generates the beacon message, encodes GPS telemetry into a compact binary format, and schedules periodic transmissions. It also implements a dual spreading-factor operation used to balance transmission range and airtime.

PX4 Parameters

The lora_gps_vcmd module uses PX4 parameters to control the LoRa GPS beacon transmission interval. Parameter updates are monitored during runtime and applied without restarting the module.

ParameterGroupDefaultRangeDescription
LORA_GPS_INTLoRA12020–86400Interval between LoRatransmissions in seconds.

The module checks the elapsed time since the last transmission once the configured interval has passed.

Beacon Transmission

The beacon periodically transmits a compact navigation packet containing the latest navigation data. The firmware may alternate between two spreading factors to increase the probability of reception at long distances while maintaining acceptable airtime.

Beacon Payload Format

The used LoRa frame contains a fixed-size binary structure optimized for minimal payload length. Total payload size is 17 bytes.

Byte offset
0   1       5       9     11    13    15    17
+---+-------+-------+-----+-----+-----+-----+
|Flg|  Lat  |  Lon  | Age | Alt | Crs | Spd |
+---+-------+-------+-----+-----+-----+-----+
OffsetSizeField
01Flags
1–44Latitude (int32)
5–84Longitude (int32)
9–102GPS age
11–122Altitude
13–142Course
15–162Speed

Field Description

FieldTypeDescription
Type / Flagsuint8Packet type identifier or navigation validity flags
Latitudeint32Latitude scaled by 2²²
Longitudeint32Longitude scaled by 2²²
GPS ageuint16Age of GPS solution [s]
Altitudeint16Altitude above MSL [m]
Courseuint16Course over ground
Speeduint16Ground speed

Latitude and longitude use a fixed-point representation:

encoded = coordinate_deg × 2^22

This encoding provides sub-meter resolution while keeping the payload small.

Flags byte

bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0
 +----+----+----+----+----+----+----+----+
 | Packet type identifier      | V  |  F |
 +----+----+----+----+----+----+----+----+

Where bit meanings are:

BitMeaning
4-7Housekeeping telemetry packet (0xF0) or Navigation beacon packet
FGPS fix available
VNavigation data valid

The Things Network Decoder Example

For integration with The Things Network (TTN), the following JavaScript decoder can be used to convert the binary LoRa payload into structured telemetry fields. The decoder runs on the server and interprets the received byte array.


function Decoder(b, port) {
  if (b[0] == 0xf0) {
    var temperature;
    var current;
    var battery_voltage = b[1] + 175;
    var current_sign = b[3] & 1;
    var battery_current = b[2];
    if (current_sign) {
      current = 0xFFFFFF00 | battery_current;  // fill in most significant bits with 1's
    }
    else {
      current = battery_current;
    }

    var voltage = battery_voltage / 100;

    var temp = b[3] >> 1;
    var temp_sign = b[3] >> 7;
    if (temp_sign) {
      temperature = 0xFFFFFF80 | temp;  // fill in most significant bits with 1's
    }
    else {
      temperature = temp;
    }

    var hits = b[4] + (b[5] << 8);

    return {
      'V' : voltage,
      'mA' : current,
      '°C' : temperature,
      'hits' : hits
    };
  }
  else {
    var lat = (b[1]<<24)|(b[2]<<16)|(b[3]<<8)|b[4];
    var lon = (b[5]<<24)|(b[6]<<16)|(b[7]<<8)|b[8];
    var latlon_age = (b[9]<<8)|b[10];
    var alt = (b[11]<<8)|b[12];
    var course = (b[13]<<8)|b[14];
    var speed = (b[15]<<8)|b[16];

    var decoded = {
      "lat": lat/4194304.0,
      "lon": lon/4194304.0,
      "latlon_ok": b[0]&0x01,
      "latlon_age_s": latlon_age,
      "alt_m": alt,
      "alt_okay": (b[0]>>1)&0x01,
      "course": course/64.0,
      "course_ok": (b[0]>>3)&0x01,
      "speed_mps": speed/16.0,
      "speed_ok": (b[0]>>4)&0x01
    };
    return decoded;
  }
}

The decoder distinguishes two packet types based on the first byte:

  • 0xF0 telemetry packet – used for housekeeping data such as battery voltage, current, temperature, and detector hit counters.
  • Navigation beacon packet – all other values of the first byte are interpreted as the navigation payload described above.

The boolean fields such as latlon_ok, alt_okay, course_ok, and speed_ok are derived from the flag bits stored in the first byte of the payload. These flags indicate whether the corresponding measurements were valid at the time of transmission. Even when a measurement is marked invalid, the payload may still contain the last available numeric value; therefore, applications should always check the validity flags before using the decoded data.

The decoder operates purely on the application payload and is independent of the LoRaWAN regional parameters. The same payload structure can therefore be used globally, regardless of the radio-frequency plan or regional network configuration.
