TF-simulator - Mission Training and Atmospheric Measurement Simulator

The TF-simulator is a solution combining atmospheric measurement and flight mission simulation. It bridges two complementary systems:

  • TF-ATMON: ThunderFly’s toolchain for in-flight atmospheric measurements using UAVs.
  • PX4-FlightGear-Bridge: A simulation environment based on FlightGear, enabling advanced training and mission rehearsal.

Together, these tools provide both environmental data collection and realistic UAV mission training, suitable for research, education, and operator preparation.

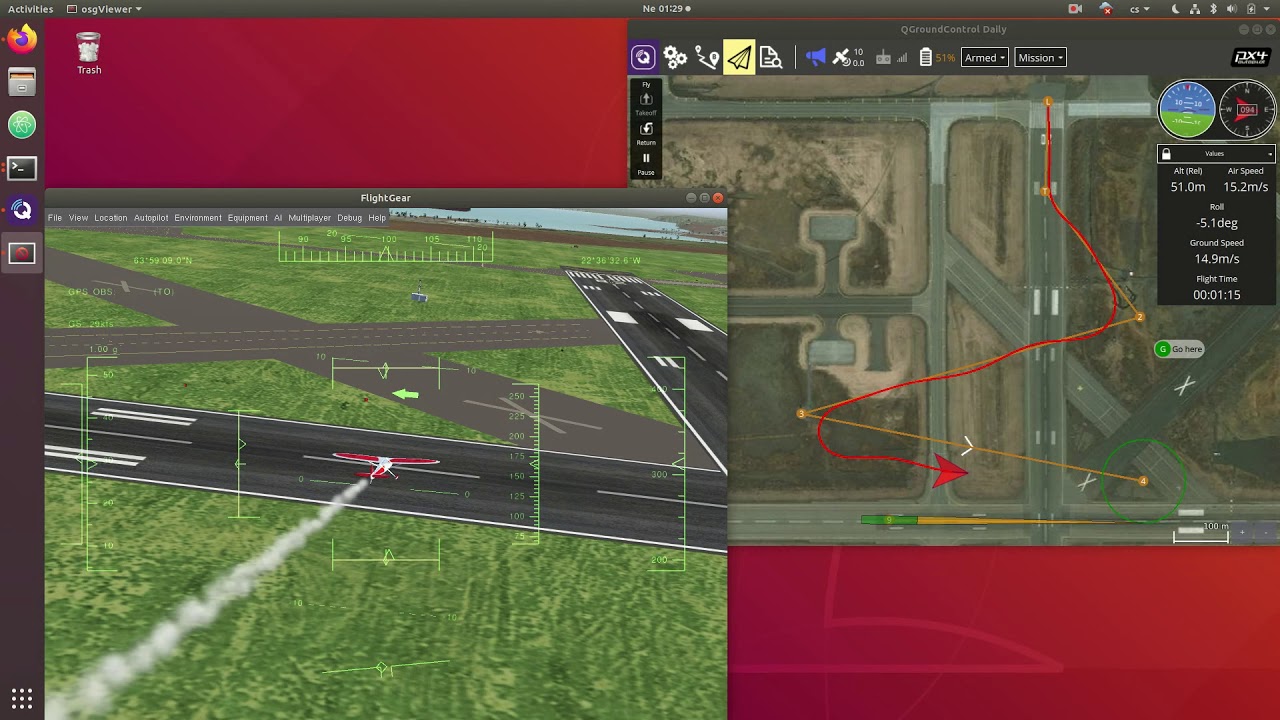

TF-simulator screenshot

How TF-simulator Works

The TF-simulator leverages the PX4-FlightGear-Bridge to connect the PX4 autopilot software stack with the FlightGear simulator. FlightGear provides:

  • Realistic flight dynamics for multiple UAV models (including TF-G1 and TF-G2 autogyros).
  • Advanced weather and environment simulations.
  • Support for training missions in diverse conditions.

Meanwhile, TF-ATMON complements this environment by offering sensor integration and payload data handling, making the simulator not just a training tool but also a platform for testing measurement workflows.

Vendor Information

The TF-simulator, including professional support, is provided by ThunderFly s.r.o..

For inquiries, training, or paid support options, contact: sale@thunderfly.cz

Key Features

  • Mission rehearsal: Test complex UAV flight plans in a safe environment.
  • Sensor simulation: Integrate TF-ATMON-compatible payloads for realistic workflows.
  • Environmental modeling: Use FlightGear’s advanced weather scenarios.
  • Model library: Support for autogyros, airplanes, and rovers.
  • Open ecosystem: Based on open-source PX4 and FlightGear projects.

Supported UAV Models

VehicleDescription
TF-G1Autogyro UAV simulation
TF-G2Advanced autogyro UAV simulation
TF-R1UAV Ground-station rover model
Rascal airplaneFixed-wing simulation

Support and Services

ThunderFly provides paid support for:

  • Simulator setup and customization.
  • Integration of new UAV models (defined in YASim).
  • Mission training packages.
  • Research collaborations.

Contact ThunderFly for tailored solutions at info@thunderfly.cz.

Technical Information

The TF-simulator builds directly on the PX4-FlightGear-Bridge and is compatible with the PX4 SITL framework. Below are technical details for setup and operation (see the PX4 documentation for a more complete reference).

Installation (Ubuntu Linux)

  1. Install the PX4 development environment (PX4 guide).
  2. Install FlightGear via PPA:
    sudo add-apt-repository ppa:saiarcot895/flightgear
sudo apt update
sudo apt install flightgear
  3. Set write permissions for the FlightGear Protocols folder:
    sudo chmod a+w /usr/share/games/flightgear/Protocol

Running a Simulation

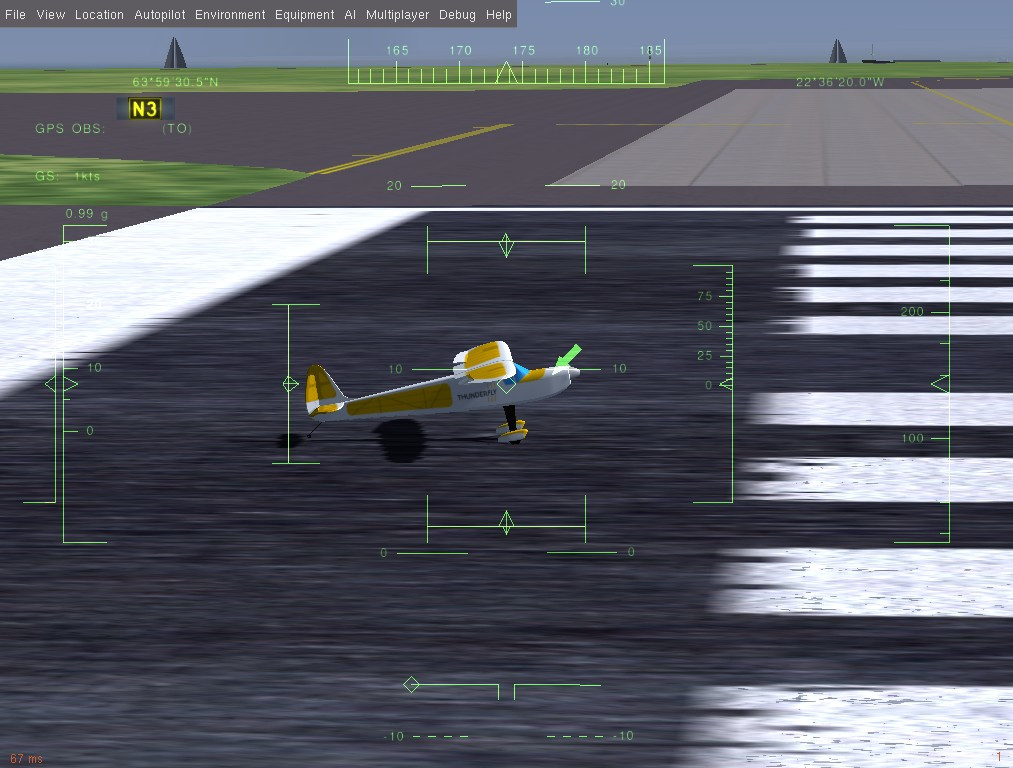

PX4-FlightGear Rascal110 Simulation

From the PX4-Autopilot directory, build and run PX4 SITL with the desired vehicle target:

cd /path/to/PX4-Autopilot
make px4_sitl_nolockstep flightgear_rascal   # Standard plane
make px4_sitl_nolockstep flightgear_tf-g1    # TF-G1 autogyro
make px4_sitl_nolockstep flightgear_tf-g2    # TF-G2 autogyro
make px4_sitl_nolockstep flightgear_tf-r1    # TF-R1 rover

QGroundControl will automatically connect to the simulated vehicle.

Taking it to the Sky

Once PX4 SITL and FlightGear are running and connected, the vehicle will be ready after initialization. In the PX4 console, wait until you see messages about GPS fusion starting. At this point, you can arm the vehicle and take off:

pxh> commander takeoff

You should see the simulated UAV (or rover/plane) become active in the FlightGear window. Use Ctrl+V in FlightGear to change the camera view.

FlightGear ThunderFly Rascal model

Configuration Options

  • FG_BINARY – Path to the FlightGear binary (can be AppImage).
  • FG_MODELS_DIR – Path to additional aircraft model directory.
  • FG_ARGS_EX – Extra FlightGear runtime arguments.

Examples:

  • Start simulation at Honolulu airport:
    FG_ARGS_EX="--airport=PHNL" make px4_sitl_nolockstep flightgear_rascal
  • Show frame rate in FlightGear: View > View Options > Show frame rate

Extending Simulation

Custom UAVs can be added by:

  1. Placing aircraft models into the models directory.
  2. Creating a .json configuration file for each model.
  3. Adding the model into PX4 build system (sitl_target.cmake).

Further development and customization are possible via the PX4-FlightGear-Bridge source code.
